Phoenix Integration Overview
This article outlines the configuration requirements and supported harnesses for integrating the Phoenix Thermal Printer with various gaming platforms, including Banilla, Jenka, IGS, Trestle, and Primero.
This guide ensures proper communication between the Phoenix and supported game platforms, and includes any special firmware or switch configurations where applicable.
BANILLA
Supported Harnesses
Phoenix requires the 5P008 serial harness.
Configuration Requirements
-

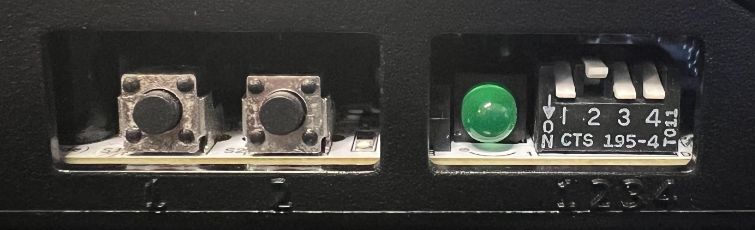

The printer must be configured for the Special interface by setting the dip switches as highlighted in red. You must power cycle the printer after changing any dip switch settings.
Interface
Dip 1
Dip 2
Dip 3
Dip 4
PULSE
ON
OFF
OFF
OFF
POG
ON
OFF
OFF
ON
ESC/POS
ON
OFF
ON
OFF
SPECIAL
ON
OFF
ON
ON

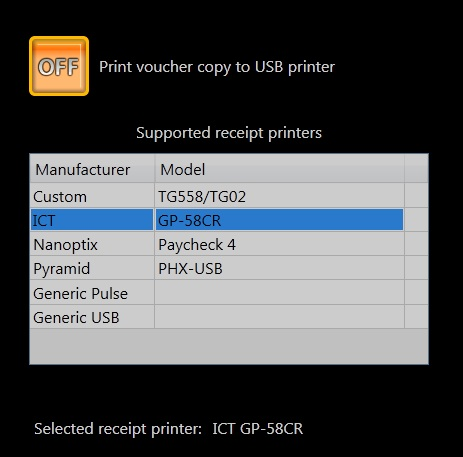

In the game menu, navigate to Configure Devices and select ICT GP-58CR under Supported bill acceptors.
The game menu can be accessed by pressing the Operator switch.
JENKA
Supported Harnesses
Phoenix requires the 5P008 serial harness.
Configuration Requirements
-
The printer must be configured for the ESC/POS interface by setting the dip switches as highlighted in red. You must power cycle the printer after changing any dip switch settings.
Interface
Dip 1
Dip 2
Dip 3
Dip 4
PULSE
ON
OFF
OFF
OFF
POG
ON
OFF
OFF
ON
ESC/POS
ON
OFF
ON
OFF
SPECIAL
ON
OFF
ON
ON
In the game menu, navigate to Configure Devices and select Pyramid under Printer Model.
Select 9600 under Printer Baud Rate.
The game menu can be accessed by pressing the Operator switch.
IGS
Supported Harnesses
Phoenix requires the 5P008 serial harness.
Configuration Requirements
-
The printer must be configured for the ESC/POS interface by setting the dip switches as highlighted in red. You must power cycle the printer after changing any dip switch settings.
Interface
Dip 1
Dip 2
Dip 3
Dip 4
PULSE
ON
OFF
OFF
OFF
POG
ON
OFF
OFF
ON
ESC/POS
ON
OFF
ON
OFF
SPECIAL
ON
OFF
ON
ON
In the game menu, navigate to Configure Devices and select PHX POG CBM1.
The game menu can be accessed by pressing the Operator switch.
TRESTLE
Supported Harnesses
Phoenix requires the 5P001 serial harness.
Configuration Requirements
-
The printer must be configured for the POG interface by setting the dip switches as highlighted in red. You must power cycle the printer after changing any dip switch settings.
Interface
Dip 1
Dip 2
Dip 3
Dip 4
PULSE
ON
OFF
OFF
OFF
POG
ON
OFF
OFF
ON
ESC/POS
ON
OFF
ON
OFF
SPECIAL
ON
OFF
ON
ON

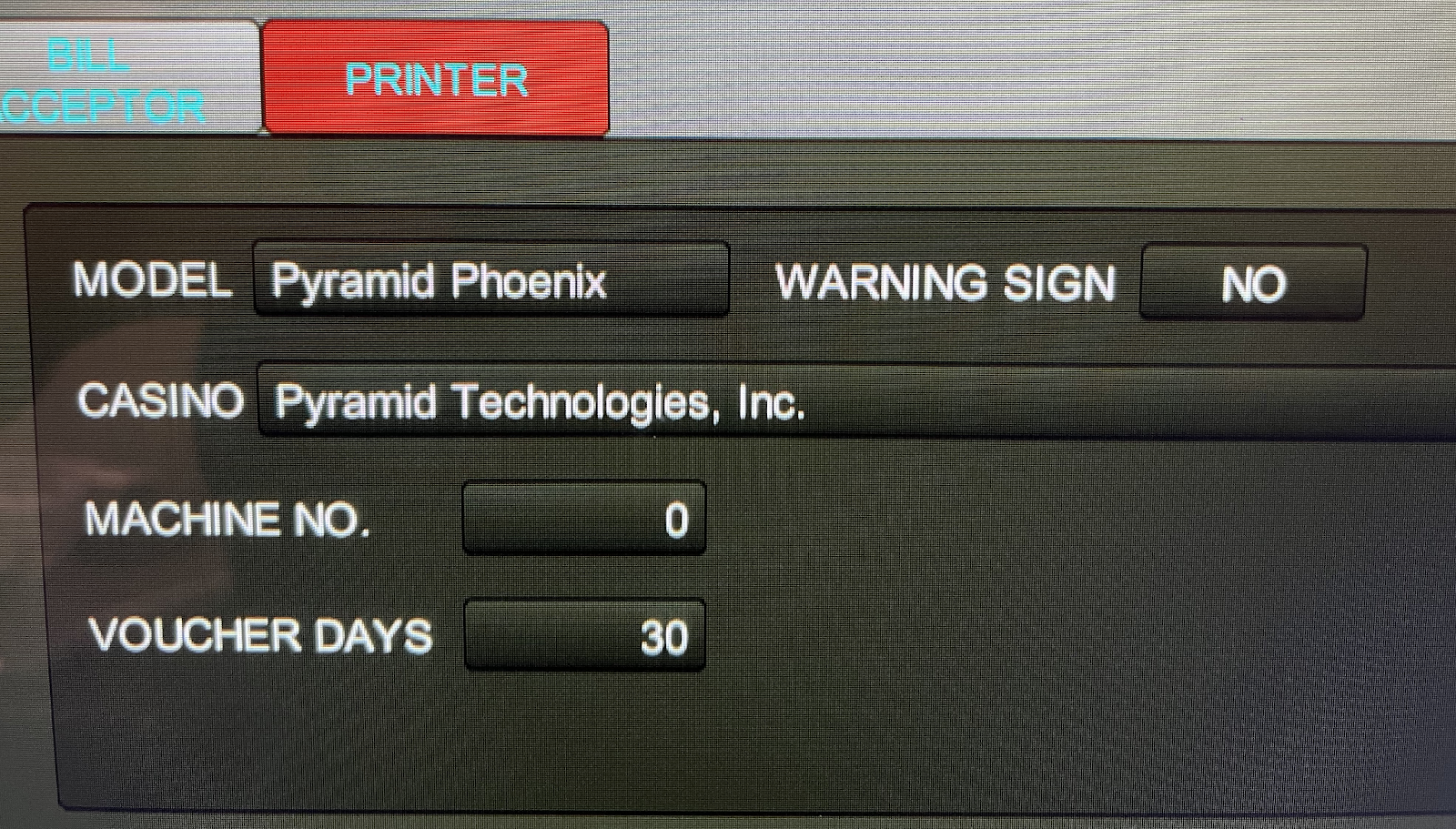

In the game menu, navigate to PRINTER and select Pyramid Phoenix.
The game menu can be accessed by pressing the Operator switch.
PRIMERO
Supported Harnesses
Phoenix requires the 5P008 serial harness.
Configuration Requirements
The printer must be configured for the ESC/POS interface by setting the dip switches as highlighted in red. You must power cycle the printer after changing any dip switch settings.
Special S09 firmware is required, which will allow you to use the Phoenix. Please Contact Support to request the firmware.
Interface |
Dip 1 |
Dip 2 |
Dip 3 |
Dip 4 |
PULSE |
ON |
OFF |
OFF |
OFF |
POG |
ON |
OFF |
OFF |
ON |
ESC/POS |
ON |
OFF |
ON |
OFF |
SPECIAL |
ON |
OFF |
ON |
ON |
In the game menu, navigate to PRINTER TYPE and select Pyramid Phoenix.
The game menu can be accessed by pressing the Operator switch.
