Reliance Firmware Update Instructions

Document Overview

This guide provides detailed, step-by-step instructions for updating the firmware on Reliance printers using the Reliance Tools software. Following this procedure ensures successful updates and proper functionality of the printer.

Required Equipment, Tools, and Files

Reliance Tools for PC

24V Power Supply

USB Type A to Type B Cable

.ptix Firmware File

---

Firmware Update Instructions

Step 1: Connect Hardware and Open Reliance Tools

• Ensure the printer is powered on before connecting the printer to your PC using the USB Type A to Type B cable. Open the Reliance Tools application.



Step 2: Select Firmware Tab

• In the Reliance Tools interface, click on the “Flash Update” tab.

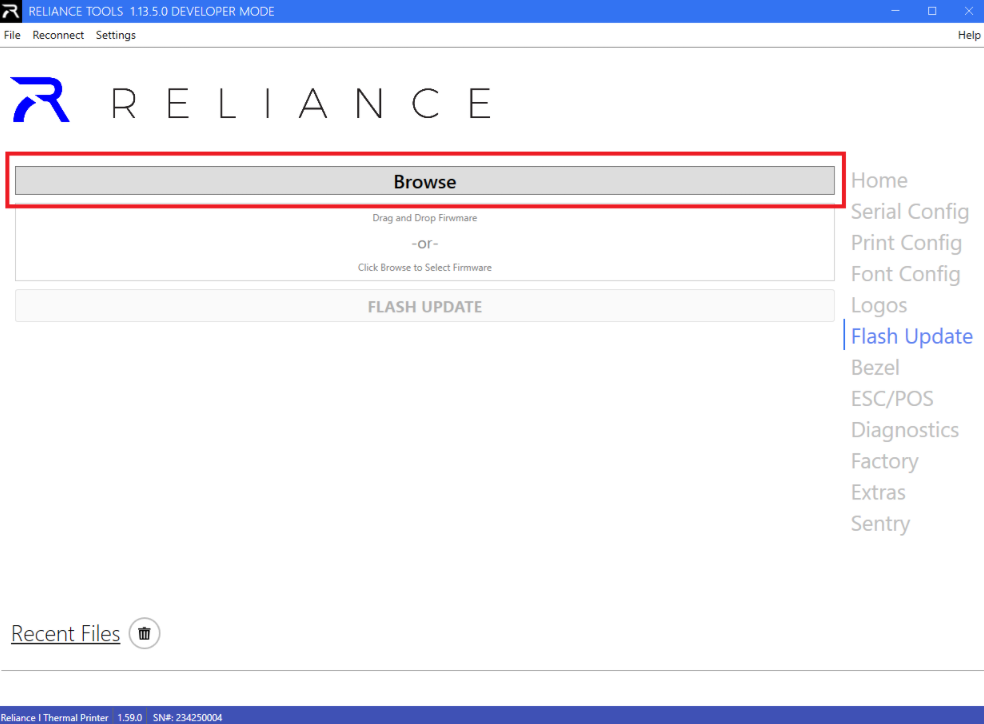

Step 3: Locate the Firmware File

• Click “Browse” to locate your .ptix firmware file on your computer.



Step 4: Select the Firmware File

• Navigate to the correct .ptix file, select it, and click “Open.”

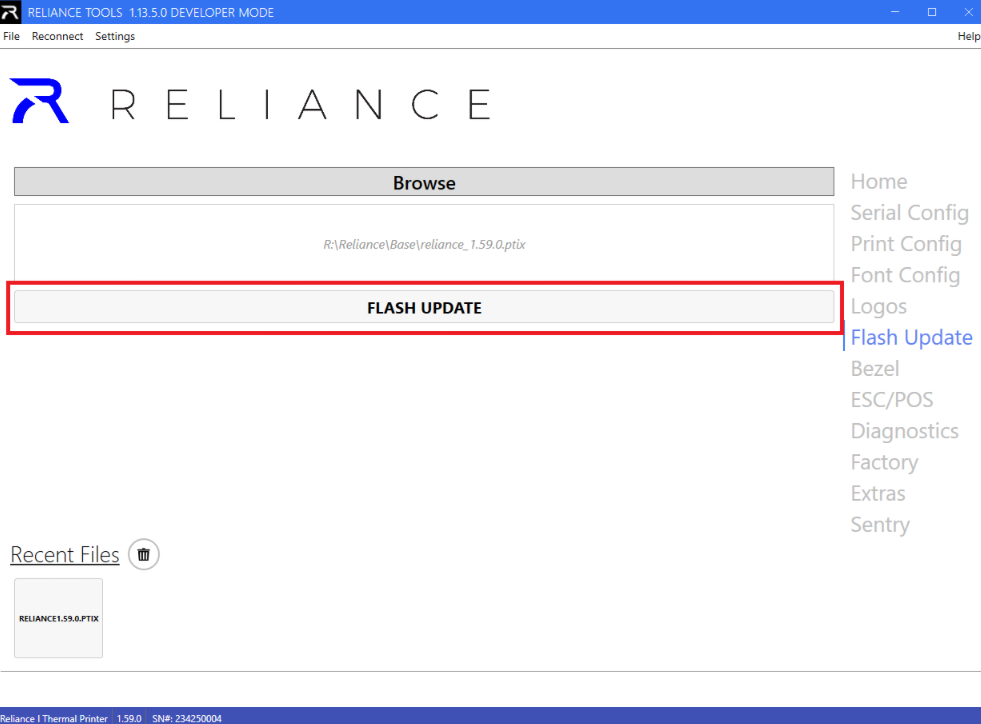

Step 5: Start the Flash Update

• Verify the file appears under the Browse field then click “Flash Update” to begin the firmware update process. The update will take approximately 30 seconds.



Step 6: Confirm Firmware Version

• Once the process completes, the new firmware version will be displayed at the bottom of the screen. If updating multiple printers, repeat Step 5 for each printer. There's no need to close the application.

---

Technical Support

If you encounter any issues or have questions about this process, please contact:

Pyramid Technologies Technical Support
📧 [e-mail]
📞 [phone]
